KORG miniKORG-700Sm

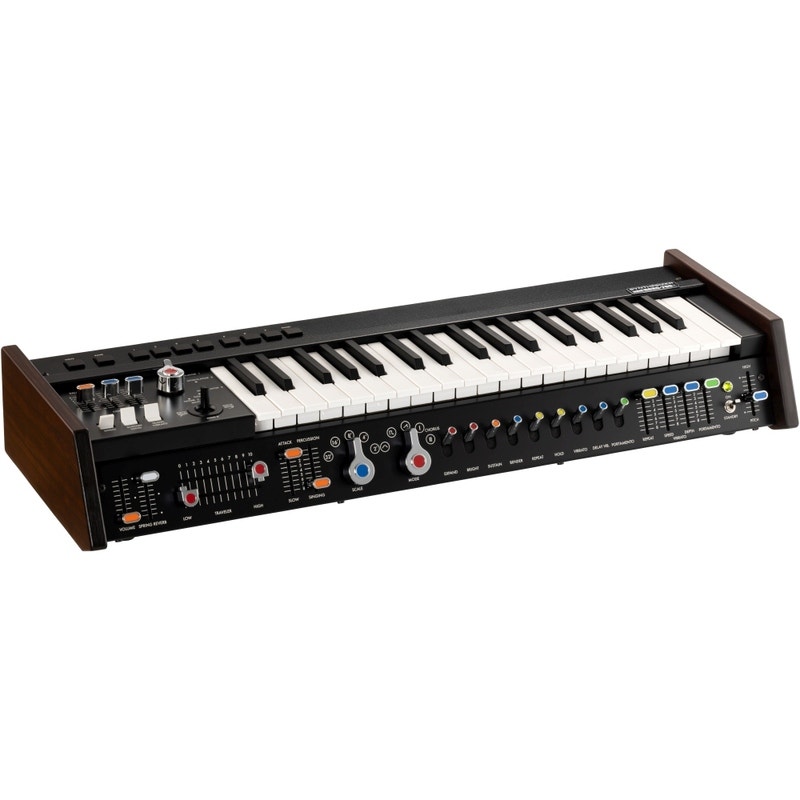

miniKORG 700Sm Analog Synthesizer

The miniKORG 700Sm is a tribute to the sound of the iconic miniKORG 700, the very origin of Korg’s analog synth history, while being enhanced to meet the needs of today’s musicians.

Downsizing the miniKORG 700FS

The new miniKORG 700Sm retains all the features of the 2021 miniKORG 700FS (which was manufactured in very limited quantities) while offering a slimmer keyboard and a size reduced to approximately 86% of the original. Additionally, the miniKORG 700Sm weighs just 5.8 kg (12.8 lbs), making it easy to transport.

Beautiful synth leads, thick bass – and more

The miniKORG 700 was KORG’s first synthesizer, and produced some of the most recognizable, rich and fattest analog sounds of all time.

The new miniKORG 700Sm features oscillators with a penetrating tone and an authentic recreation of the Traveler controller– a signature element of the miniKORG 700 – designed to add extraordinary color and expression to performances. Its sound fits seamlessly in today’s music, especially with its standout lead and bass synth tones.

The possibilities as a sub keyboard

The miniKORG 700 was originally designed as a sub keyboard, often placed atop organs (frequently used in the 1970s) to expand their sound palette. The miniKORG 700Sm, with its compact and portable form factor, stands out as a powerful solo instrument but also complements stage keyboards like electric pianos and organs seamlessly.

The controls on the miniKORG 700 were laid out below its keys in a row, allowing players to easily access them when the instrument was placed on top of an organ. This intuitive layout remains unchanged, offering simplicity, ease of use, and a unique look that sets it apart from any other instrument.

Added Functionality

When the original miniKORG 700 was originally released, electronic components were larger in size, limiting functionality due to the small space inside. Thanks to advancements in technology, we now have room to include a spring reverb as well as a joystick for pitch bend and modulation. The new version also features aftertouch for added expressiveness, as well as an arpeggiator, USB port, MIDI IN connector and a CV/GATE IN jack.

We have also added memory programs to store settings, something that wasn’t available in the early 1970s.

Traveler controller

A unique feature of the miniKORG 700, the Traveler controller, consisted of two parallel sliders located below the keyboard. With these controls, players could adjust the cutoff frequency, with the upper lever controlling the low-pass filter and the lower lever controlling the high-pass filter. This gave players the freedom to adjust the expressive character of the sound according to the position of the levers. By moving the levers to the left and right while playing the keys, wah-wah and muted sounds could be created along with the iconic “traveling” sound.

Since the sound passing through the filter has a lower cutoff frequency and higher cutoff frequency than the frequencies set by the sliders, all frequencies are filtered and thus no sound is heard when the positions of the two sliders are inverted. In other words, making the two sliders cross would in theory produce no sound. To address this, the original miniKORG 700 featured protrusions on the sliders to physically prevent them from crossing.

The design was both a benefit and limitation of analog circuitry. In the past – and even today – it is impossible to design a filter with perfect characteristics. During the time that the miniKORG 700 was sold, some players would shave off the protrusions on the sliders to allow them to cross, in an attempt to create new sounds. In fact, some models sold internationally did not even have the protrusions to begin with.

The miniKORG 700Sm also does not have the protrusions, opening endless sound design possibilities and allowing players to create patches in unique ways.

A second oscillator

The miniKORG 700 was a single-oscillator mono synth. One year later 1974, the miniKORG 700S was released with more space added to the left of the keyboard for a controller. This version also introduced a second oscillator, a ring modulator, and other enhancements. The new Sm model we are releasing is a revival of the 700S, with its expanded functionality, including two oscillators that deliver powerful detuning and thick, penetrating sounds, particularly for bass and lead sounds.

Includes a made-to-fit soft case

The miniKORG 700Sm comes with a made-to-fit soft case that is handy for taking the instrument wherever you go.

Free music software bundle

The miniKORG 700Sm comes with a diverse variety of music software including Izotope (featuring “Ozone Elements” which lets you not only create songs but also master them using AI), “Skoove” which will help you improve your keyboard playing skills, “miniKORG 700S” from the KORG Collection software, as well as a wide range of software synths from KORG and other developers.

The miniKORG 700Sm comes with these great tools to help you take your music to the next level.

Specifications:

• Keyboard: 37 keys (Slim-key, with aftertouch, no velocity sensitivity)
• Range: 7 octaves
• Waveforms: Triangle wave, Square wave, Sawtooth wave, Chorus I, Chorus II
• Programs: 14
• Input: USB connector (Type B), MIDI IN connector, SYNC IN and SYNC OUT jack (3.5mm monaural mini phone jack), CV IN and GATE IN jack (3.5mm monaural mini phone jack), AUDIO IN jack (6.3mm monaural phone jack, TS unbalanced)
• Output: OUTPUT L/MONO and R jack (6.3mm stereo phone jack, TS unbalanced), Headphones jack (6.3mm stereo phone jack)
• Power supply: AC adapter (DC 12V)
• Power consumption: 9 W
• Dimensions: (W x D x H) 641 x 228 x 107 mm
• Weight: 5.8 kg

Included items: AC adapter, Traveler knob (without protrusions type) x 2, Soft case

Accessories: (sold separately) SQ-CABLE-6 (Patch Cable)
